SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

Product Categories
Shenzhen Begate Technology Co.,Ltd.
Contact Now

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

  • 1
  • 2
  • 3

Brand Name : OEM and ODM

Model Number : SM 8F 12F 12F MPO MTP cable

Certification : CE,ROHS,ISO9001,IEC and TIA

Place of Origin : Made in China

MOQ : We are factory , NO MOQ, 1 piece is available.

Price : USD 9.99 / piece ~ USD 299.99 / piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , Cash

Supply Ability : 3000 pieces / day

Delivery Time : Samples within 3 days, bulk orders within 12 working days

Packaging Details : 1 piece / PE bag; 100 pieces / carton

Connector type : MPO APC Female or MPO APC Male

Cable diameter : 3.0 mm

Fiber count : 8F 12F 24F

Polarity : Type A

100% tested : IL & RL ; 3D test

Cable jacket material : LSZH

Warranty : 10 years

Sample : Available

Contact Now

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

Overview of SM OS2 MPO MTP Fiber Cable

As an experienced and innovative fiber optic cable manufacturer, Begate produces and supplies complete MPO trunk fiber optic cabling solutions for high-density optical connectivity in the modern data center. With this MTP/MPO fiber cable, you are ready for deployment in any singlemode 9/125 MTP/MPO network. Singlemode 9/125 cables are best used for long cable runs and the push-on connectors hold them securely in place. This singlemode, MTP/MPO fiber cable is comprised of 12 fibers or 6 duplex channels within each connector. These high density cables are perfect when you have limited space and but still want that great fiber connection. It has a yellow, riser rated, LSZH jacket.

Features of SM OS2 MPO MTP Fiber Cable

  1. Connector 1: MTP/MPO Female or MTP /MPO Male
  2. Connector 2: MTP/MPO Female or MTP /MPO Male
  3. Singlemode
  4. 9/125 Microns - OS2
  5. Immune to Electrical Interference
  6. 100% Optically Inspected and Tested for Insertion Loss and Return Loss
  7. Available Jacket: PVC, LSZH, OFNR (Riser-rated)

Applications of SM OS2 MPO MTP Fiber Cable

  1. Fiber Network Deployments
  2. Fast Ethernet
  3. Gigabit Ethernet
  4. Other Data Applications Requiring High Transfer Rates

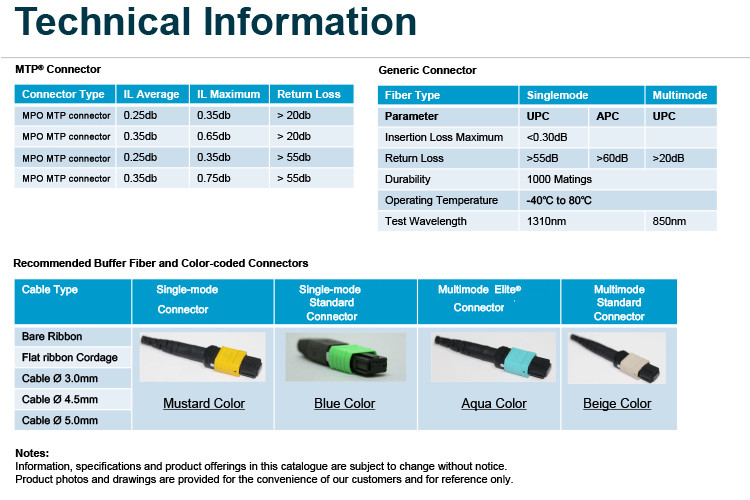

Specification of SM OS2 MPO MTP Fiber cable

Performance Level Standard Elite
Connector Mode Endface IL(max) (dB) RL(min) (dB) IL(max) (dB) RL(min) (dB)
MPO/MTP SM 8F/12F/APC ≤0.70 ≥60 ≤0.35 ≥60
24F/APC ≤0.75 ≥60 ≤0.35 ≥60
48F/APC ≤0.75 ≥60
MM 8F/12F/PC ≤0.50 ≥20 ≤0.35 ≥20
24F/PC ≤0.50 ≥20 ≤0.35 ≥20
48F/PC ≤0.50 ≥20

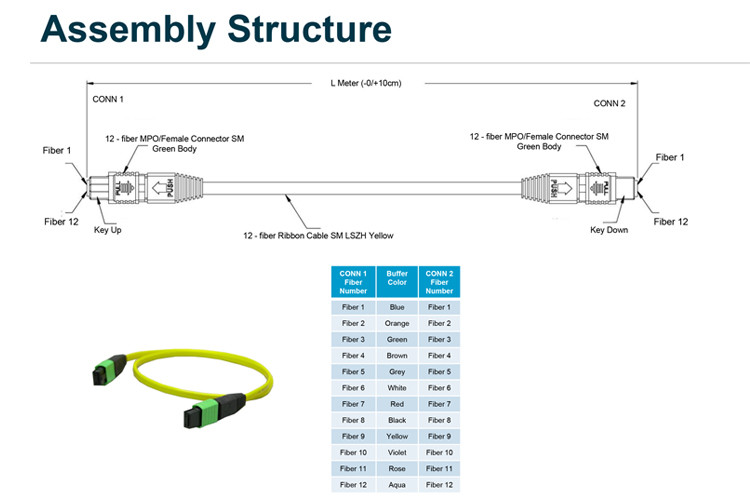

Structure of SM OS2 MPO MTP Fiber Cable

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

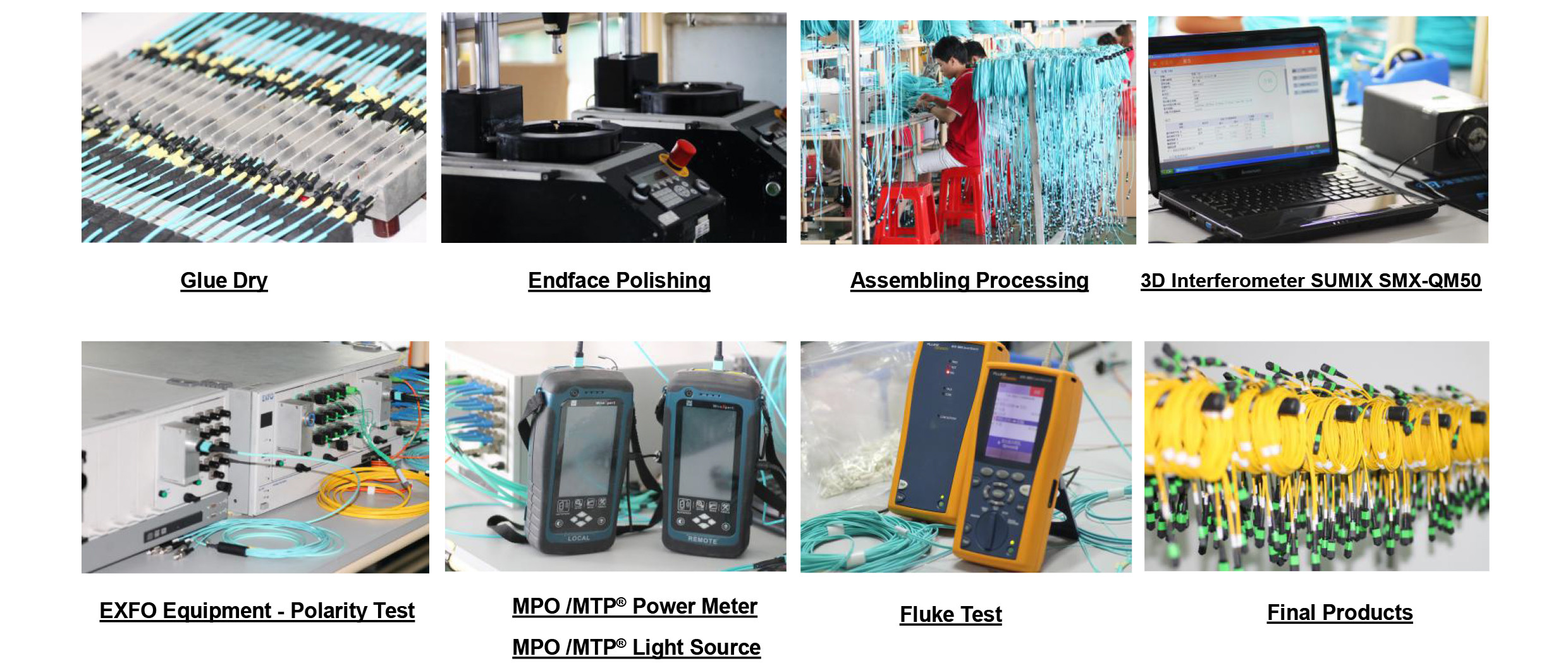

SM OS2 MPO MTP Fiber cable production line

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

Begate provides High Density Multi-fibers Solutions which are Fiber Optic MTP® / MPO Assemblies application in data center.
Welcome to your inquiry and we surely provide you good prices, reliable quality and great services!

Customize your Own MPO MTP Fiber Cable Using the following chart.

Product Type Connector A Connector B Fiber Count Fiber Type Length Polarity Jacket
MT=MPO / MTP Trunk Cable Assemblies MPO / M = MTP / UPC 8 Fiber Male LC = LC / UPC 8 = 8 Fiber OS1 = 9um Single Mode OS1 1M = 1 meter A = Type A ( Straight Through) PVC
MF=MPO / MTP Fan - out / Harness Fiber Optic Cable MPO / F = MTP / UPC 8 Fiber Female LCA= LC / APC 12 = 12 Fiber OS2 = 9um Single Mode OS2 2M = 2 meter B = Type B (Cross) LSZH
MC=MPO / MTP Fiber Optic Cassette MPO / A / M = MTP / APC 8 Fiber Male SC = SC /UPC 24 = 24 Fiber OM1 = 62.5um Multi Mode OM1 3M = 3 meter C = Type C (Cross Pair) OFNP
ML=MPO / MTP Loopback MPO / A / F = MTP / APC 8 Fiber Female SCA = SC / APC 48 = 48 Fiber OM2 = 50um Multimode OM2 xx m = xx meter
MP=MPO Fiber Optic Cassette Rack Mount Holders MPO / M = MTP / UPC 12 Fiber Male FC = FC / UPC 72 = 72 Fiber OM3 = 50um Multimode 10G OM3
MPO / F = MTP / UPC 12 Fiber Female FCA = FC / APC 96 = 96 Fiber OM4 = 50um Multimode 10G OM4
MPO / A / M = MTP / APC 12 Fiber Male DLC = Dulpex LC / UPC 144 = 144 Fiber
MPO / A / F = MTP / APC 12 Fiber Female DLCA = Duplex LC / APC
MPO 24 / M = MTP / UPC 24 Fiber Female
MPO 24 / F = MTP / UPC 24 Fiber Female
MPO 24 / A / M = MTP / APC 24 Fiber Male
MPO 24 / A / F = MTP / APC 24 Fiber Female

Why Choose Bagate ?

SM OS2 8F 12F 24F Male Female Type A 100% tested MPO MTP Fiber Cable

  1. Own factory. We can save your money(Factory-sale),
  2. Strong R&D ability
  3. Strictly quality control with Reliable quality(2years warranty),
  4. Fast delivery(within 7days)
  5. No MOQ (1piece okay)
  6. Credit supports.
  7. Customization(Print your logo).
  8. Free sample
  9. One-stop procurement of products in the telecommunication industry can be achieved.
  10. High efficient and professional sales and aftersales services, care bout partners benefits and win-win situation.
