Armored ODVA SC Fiber Optic Patch Cords Single Mode Simplex Fiber Optic Jumper

  • 1
  • 2
  • 3

Brand Name : OEM and ODM

Model Number : Armored ODVA-SC SM SX

Certification : CE,ROHS,ISO9001,IEC and TIA

Place of Origin : Made in China

MOQ : We are the professional manufacturer , NO MOQ, 1 piece is ok.

Price : USD 19.99 / piece ~ USD 999.99 / piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , Cash

Supply Ability : 3000 pieces / day

Delivery Time : Samples within 3 days, bulk orders within 15 working days

Packaging Details : 1 piece / PE bag; 300 pieces / carton

Connector Type : ODVA-SC SM SX

Fiber type : Armored Optical Fiber

Length : 0.5m/1m/2m/3m/5m/10m/ or customized

Cable diameter : 5.0mm, 7.00mm

Insertion Loss : Typical value≤0.15dB;Maximum≤0.30

Return loss : ≥ 60dB (APC); ≥ 50dB (UPC)

Contact Now

Waterproof Armored ODVA-SC Single Mode Simplex Fiber Optic Jumper

Overview of Armored ODVA-SC Fiber Optic Jumper

Sealed Circular ODVA fiber optic patch cable assemblies provides low cost ideal solution for CATV, RRH remote radio heads, FTTX harsh environment connectivity.

This ODVA-LCDX, ODVA-SC and ODVA-MPO is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use.

Features of Armored ODVA-SC Fiber Optic Jumper

  1. High compatibility: can be assembled ODVA, Hconn(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
  2. Factory-sealed or field assembly.
  3. Strong enough: working under 1200N pulling force long term.
  4. From 2 to 12 ports for single or multifiber harsh connectors.
  5. Available with PLC or splice sleeve for fiber divide .
  6. Wall-mounting, aerial installation or holding pole installation.
  7. Decreased angle surface and height make sure no connector interfering when operating.
  8. Meet IEC 61753-1 standard.

Application of Armored ODVA-SC Fiber Optic Jumper

  1. FTTH
  2. Outdoor Areas
  3. Harsh Environment
  4. 3G,4G,5G Base Station.
  5. Horizontal and Vertical Cabling.
  6. BBU,RRU,RRH,LTE

Technical Specification of Armored ODVA-SC Fiber Optic Jumper

Optical Characteristics
Item Parameter
Insertion loss Single mode Multimode
Typical value≤0.15dB;Maximum≤0.30 Typical value≤0.15dB;Maximum≤0.30
Return loss ≥ 60dB (APC); ≥ 50dB (UPC) ≥30dB (UPC)
Mechanical Characteristics
Test Conditions
Endurance 500 matings
Vibration Frequency: 10 to 55Hz,Amplitude: 0.75mm
Cable retention 400N (main cable); 50N (connector part)
Strength of coupling mechanism 80N for 2 to 3mm cable
Cable torsion 15N for 2 to 3mm cable
Fall 10 drops, 1m drop height
Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part)
Cold -25°C, 96h duration
Dry heat +70°C, 96h duration
Change of temperature -25°C to +70°C, 12 cycles
Humidity +40°C at 93%, 96h duration

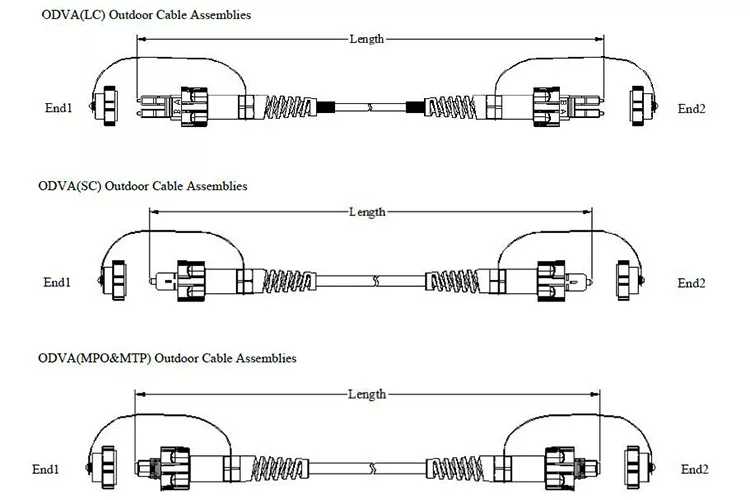

Optional types of ODVA patchcords

Armored ODVA SC Fiber Optic Patch Cords Single Mode Simplex Fiber Optic Jumper

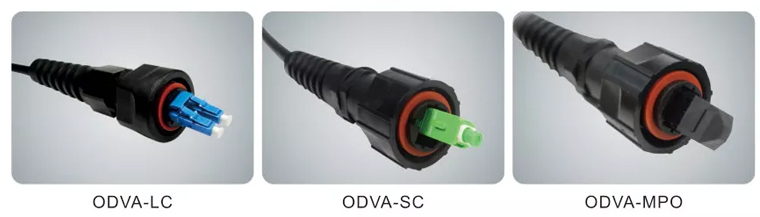

Optional ODVA connector types

Armored ODVA SC Fiber Optic Patch Cords Single Mode Simplex Fiber Optic Jumper

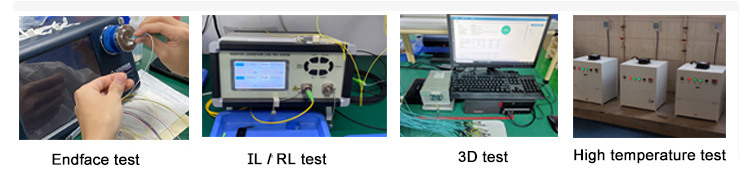

100% factory tested with traceable test data

Armored ODVA SC Fiber Optic Patch Cords Single Mode Simplex Fiber Optic Jumper

More questions?

Our informative and experienced representatives are ready to assist you with any questions that you might have, regarding your fiber optic network. We offer a superior selection of quality products as well as competitive pricing to help get your project completed and under budget.
